"Designing the Future of Comfort with Precision HVAC Drafting."

We specialize in providing detailed, accurate HVAC shop drawings tailored to meet your project needs. Our shop drawings include comprehensive layouts for ductwork, piping, ventilation, and equipment placement, ensuring seamless coordination with other building systems. With a focus on precision and compliance with industry standards, our designs help contractors and installers execute projects efficiently and without errors.

Work Terms

Project Scope
Clearly define the scope of work, including the specific services offered (e.g., 2D/3D drafting, system analysis, revisions).

Timeline
Specify the estimated timeline for project completion, including key milestones and deadlines. Provide options for expedited services if available.

Revisions
Outline the number of revisions included in each package and the process for requesting changes. Specify any fees for additional revisions beyond the agreed limit.

Payment Terms
Detail the payment structure, including deposit requirements, payment methods accepted, and final payment conditions upon project completion.

Delivery Format
Indicate the file formats in which the final drawings will be delivered (e.g., PDF, DWG, Revit) and any additional documentation provided.

Confidentiality
Include a confidentiality clause to protect the client’s sensitive information and project details.

Client Responsibilities
Specify what is required from the client, such as providing building plans, specifications, and timely feedback to ensure the project progresses smoothly.

Cancellation Policy
Outline the terms for project cancellation, including any fees or refunds applicable based on the stage of work completed.

Limitations of Liability
Define any limitations on liability regarding design accuracy or performance issues resulting from the use of the drawings.

Communication
Establish preferred methods of communication and response times for project updates, questions, or feedback.

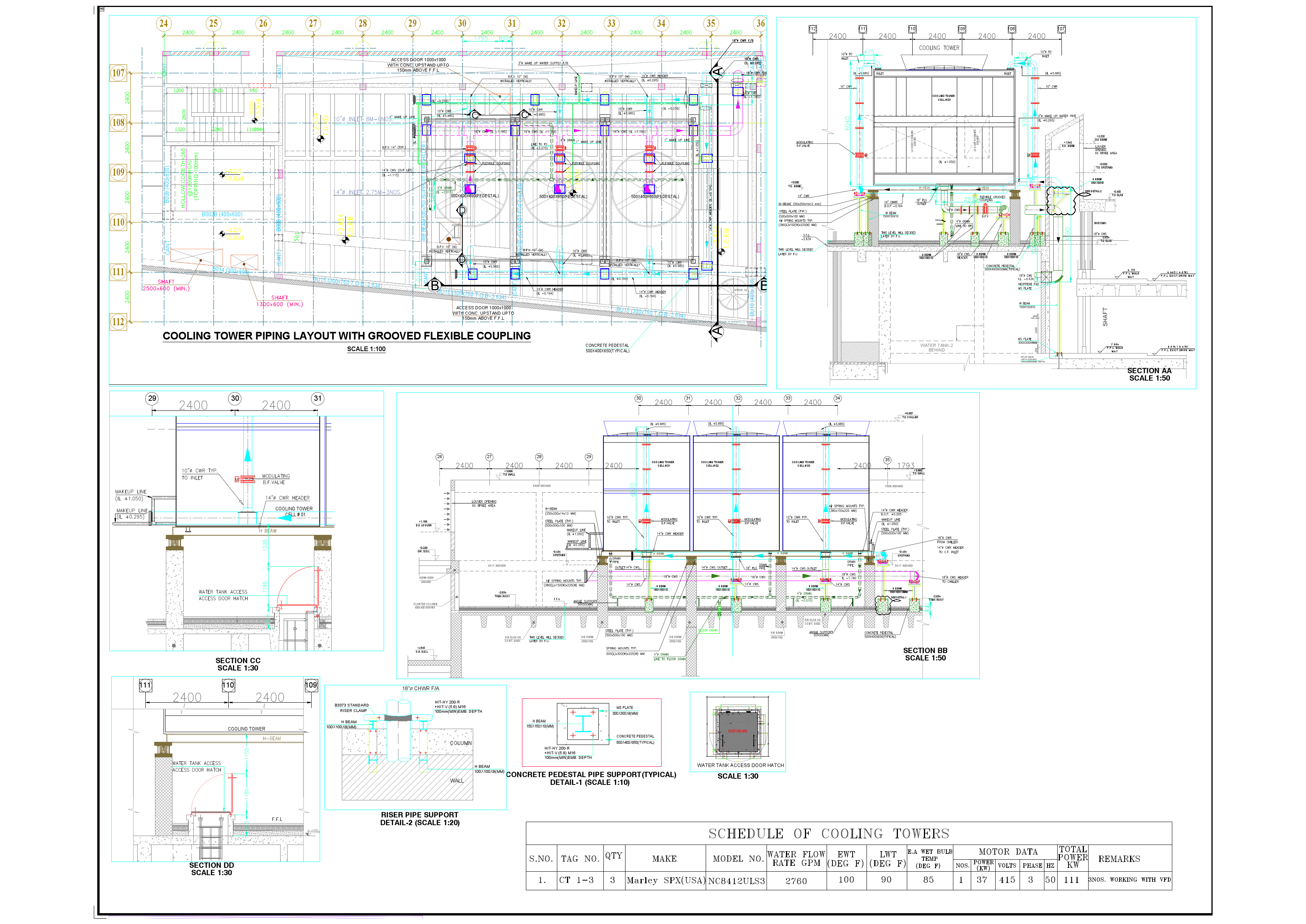

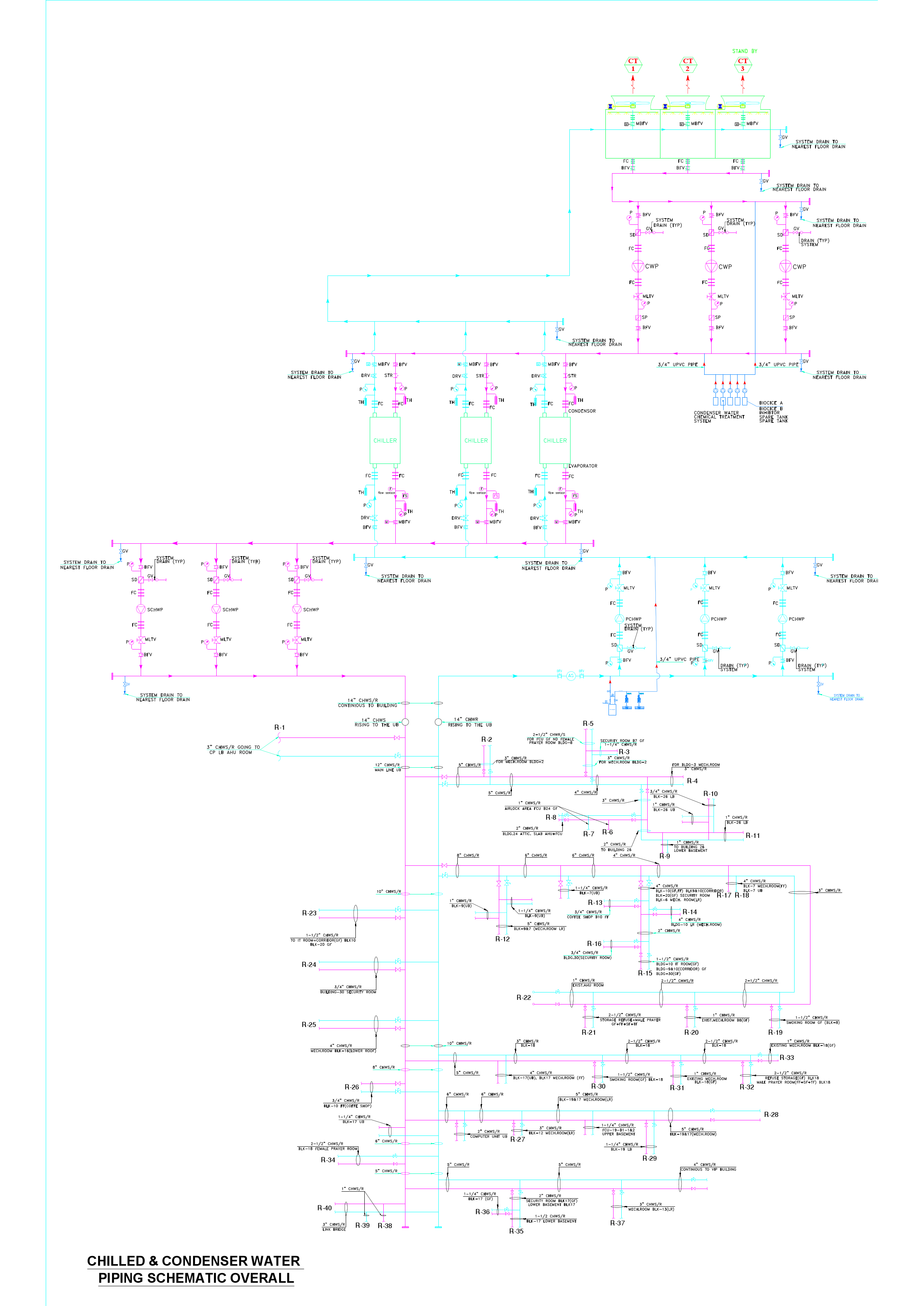

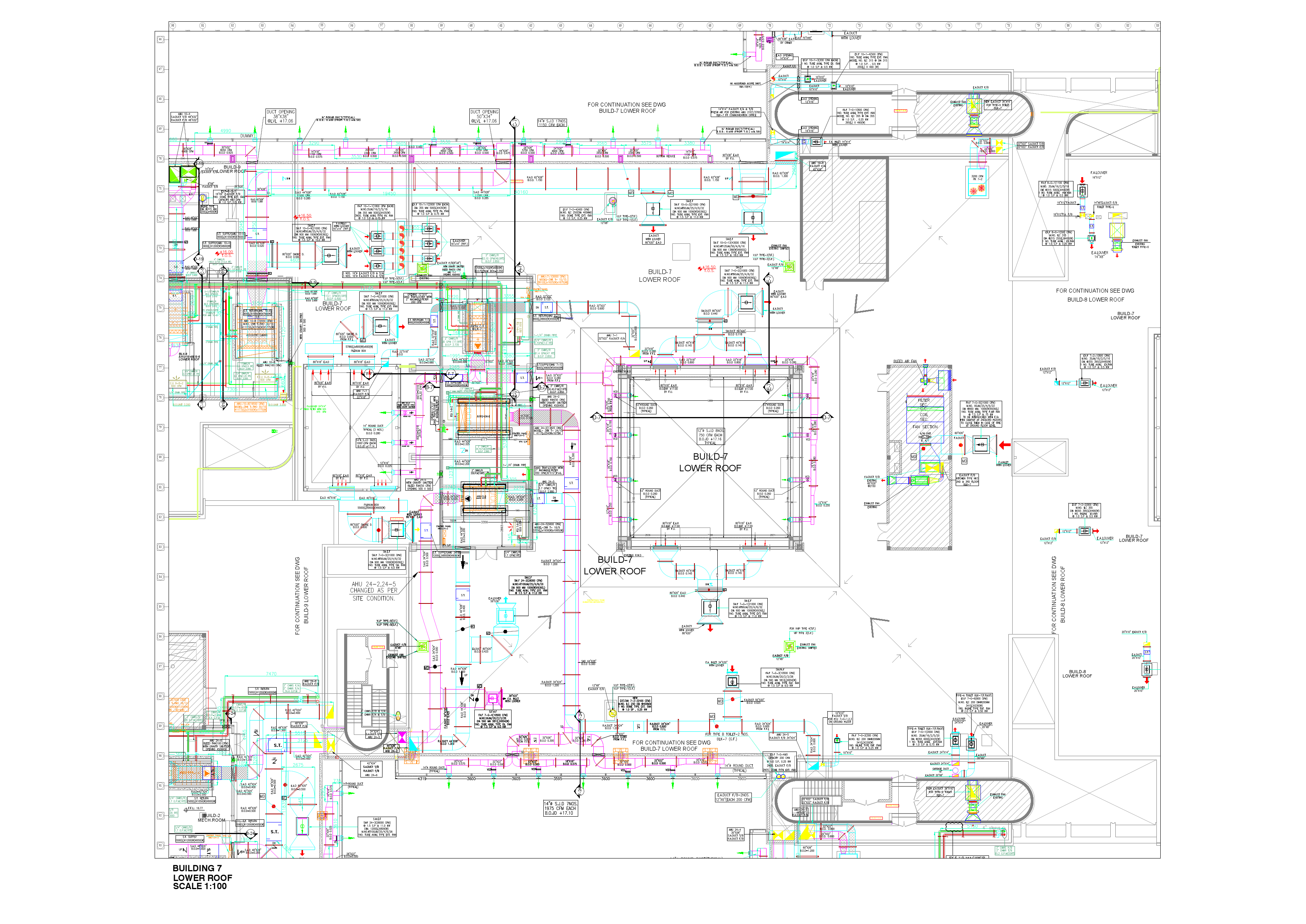

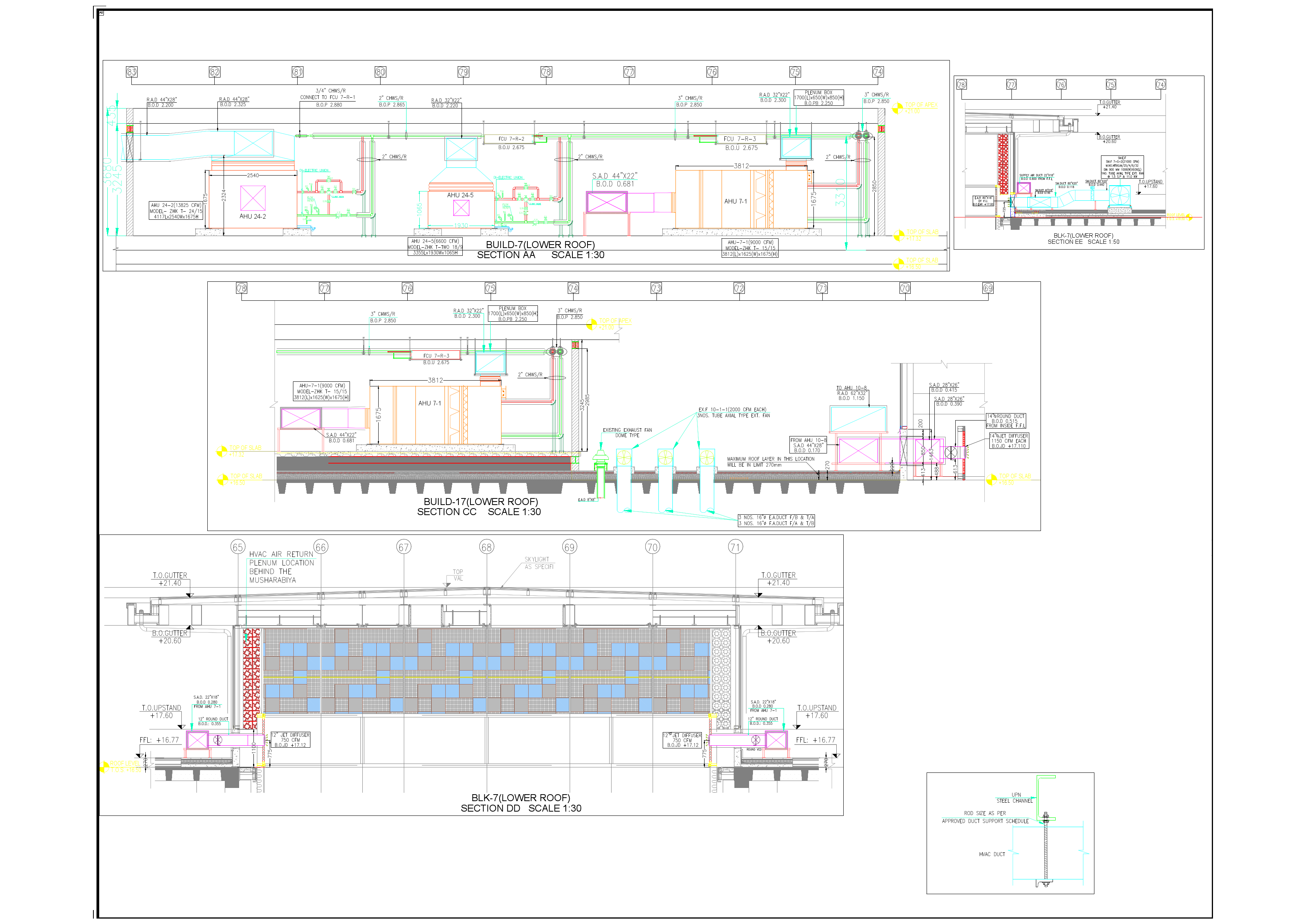

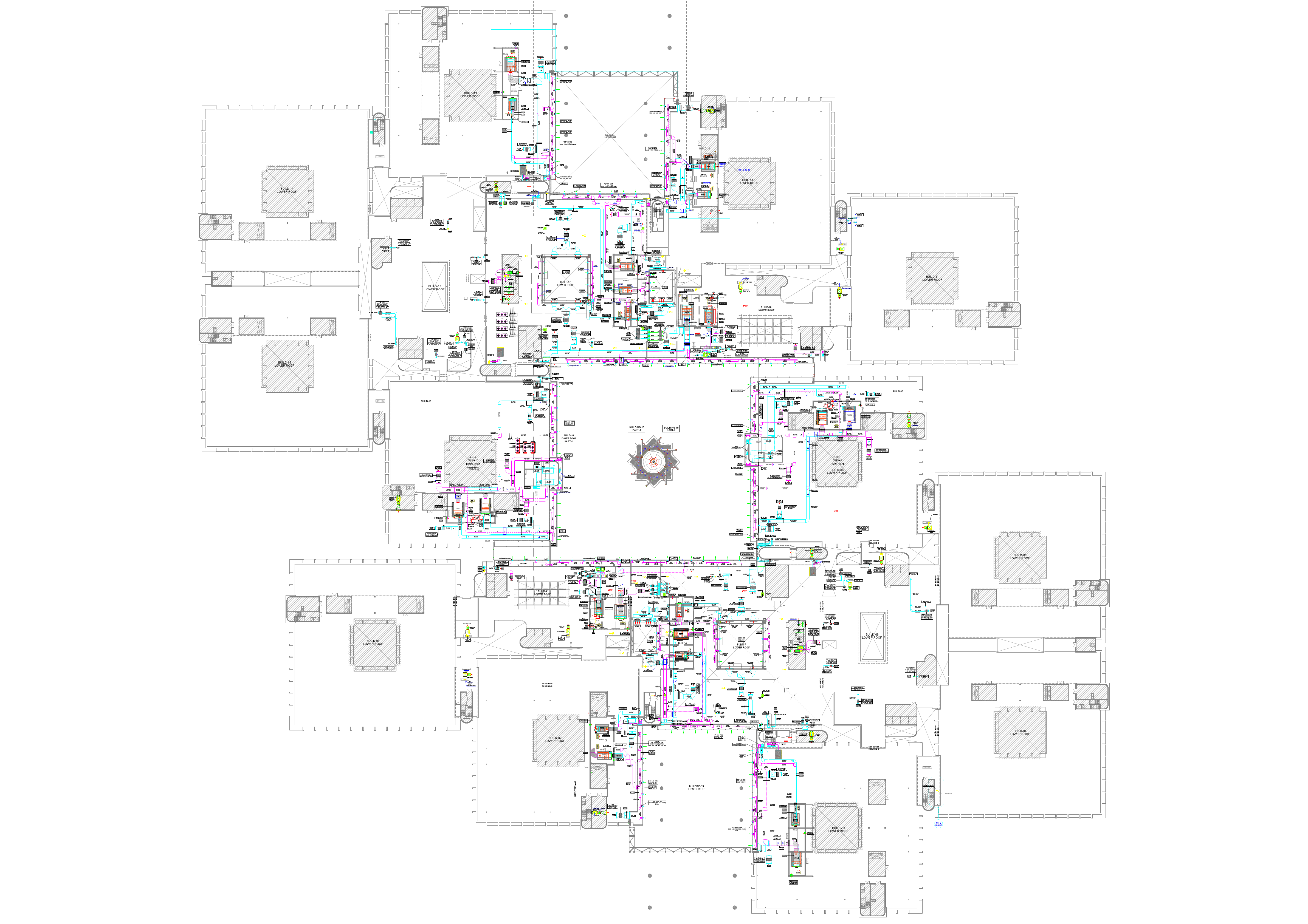

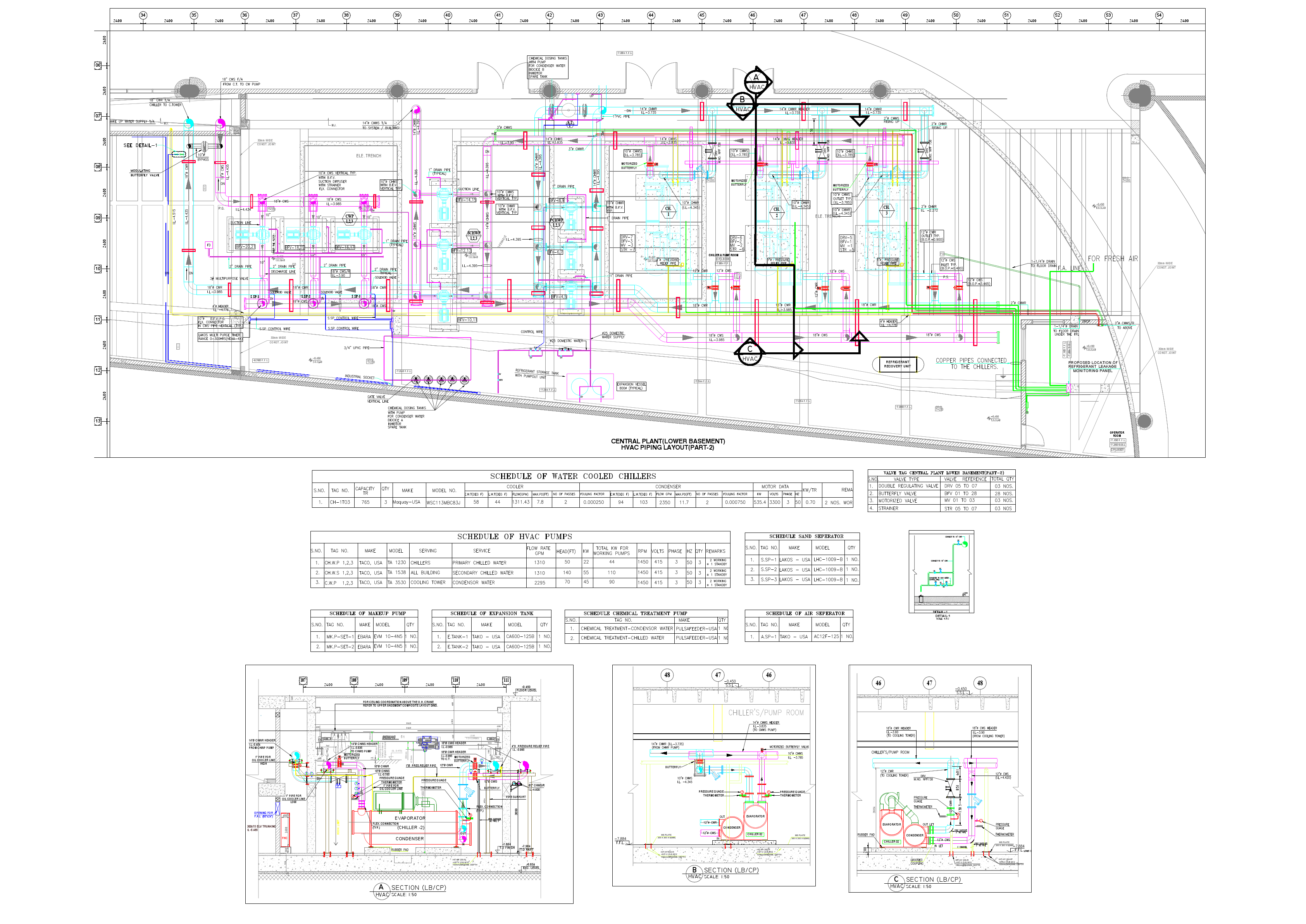

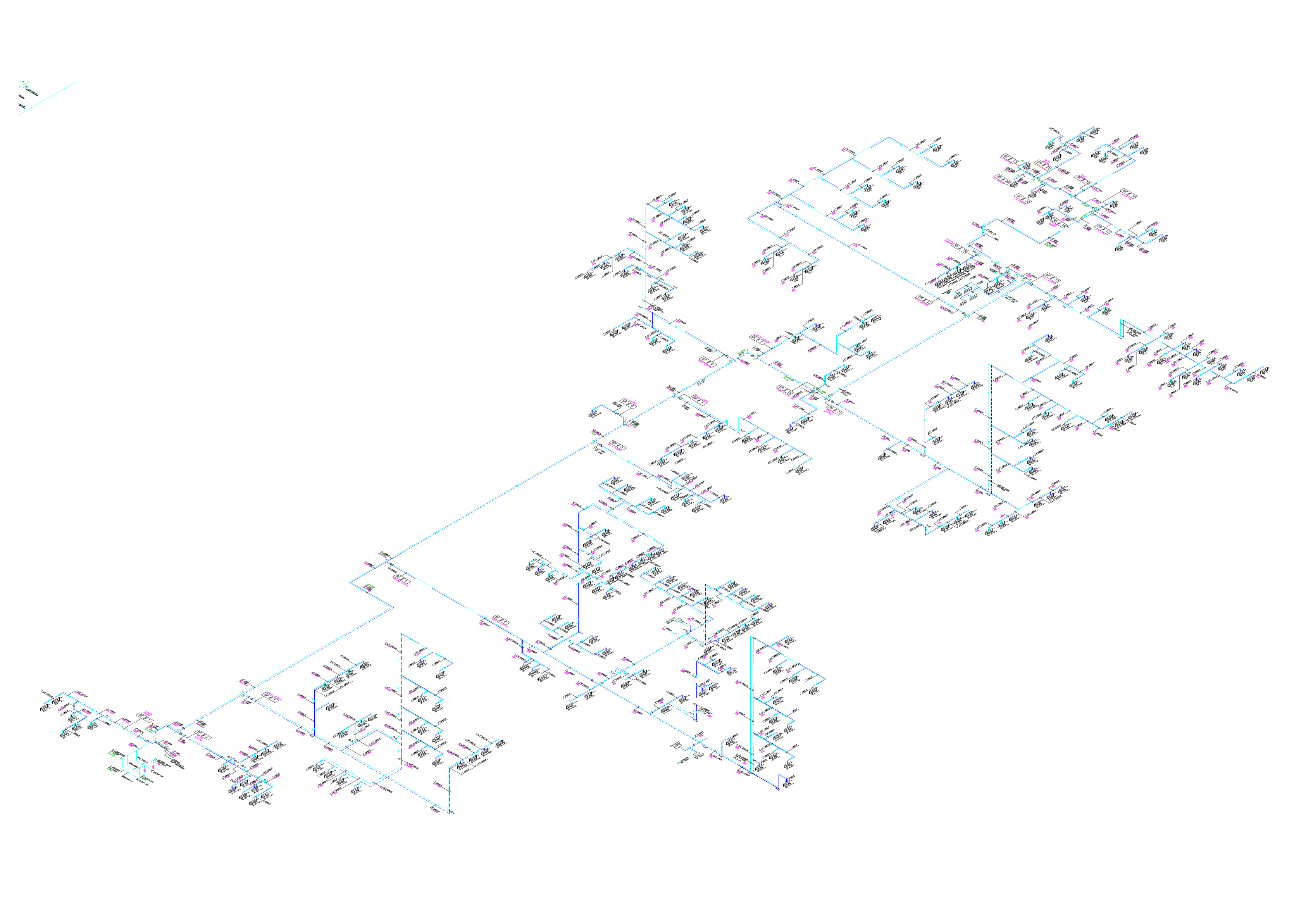

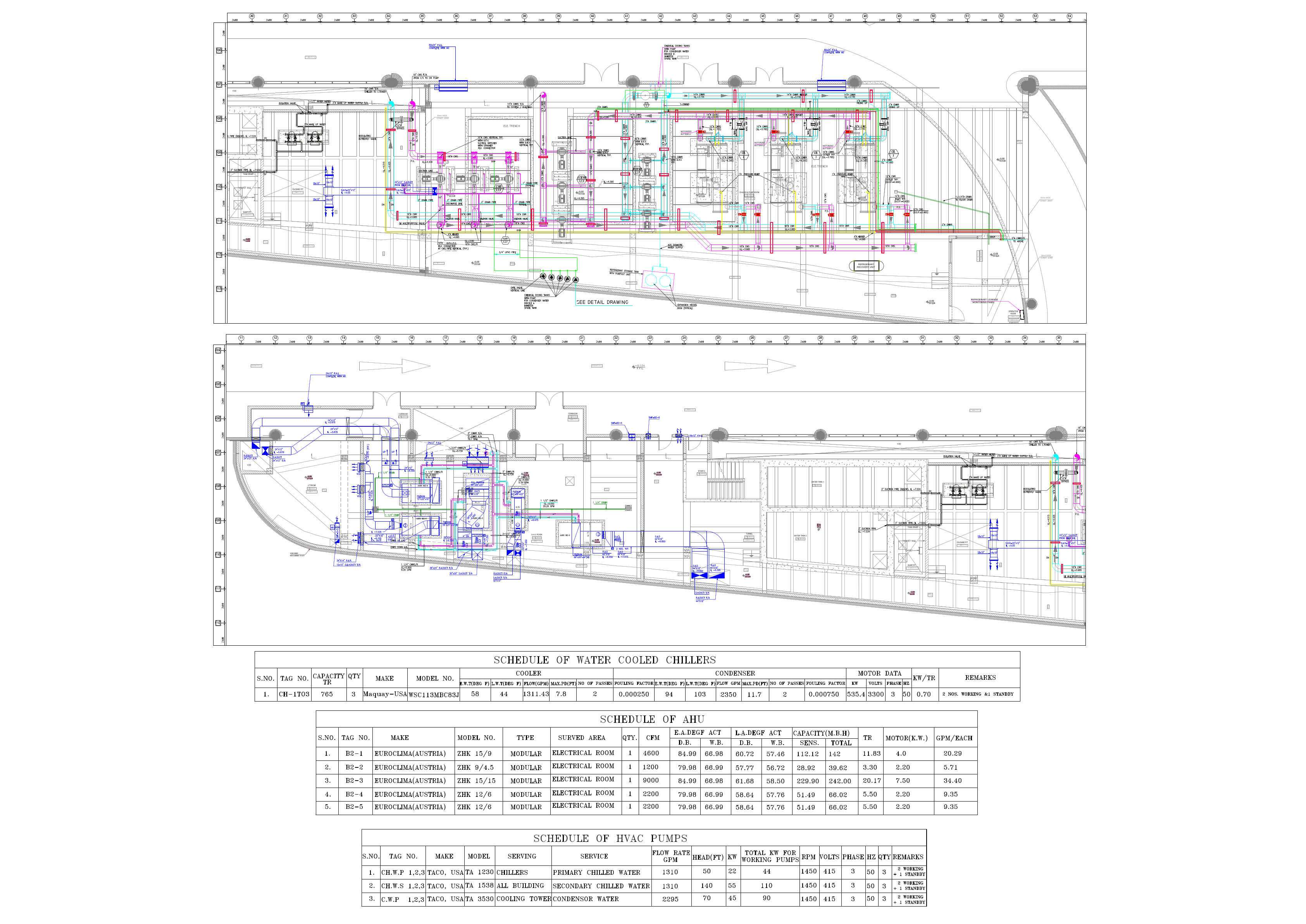

Attachments (Click to Preview)
